ENGINE
Engine - Kubota 3-cyl diesel
Power - 20–25 HP
Emissions - Stage V / Tier 4 Final
PERFORMANCE
Lift Capacity - 2,271 lbs (w/ rear weights)
Lift Height - 9 ft 0 in (2.75 m)
Hydraulic Flow - 60 L/min
Travel Speed - 7.8 mph (12.5 km/h)
DIMENSIONS & WEIGHT
Operating Weight - 2,116 lbs (960 kg)
Length - 7 ft 10 in (2.39 m)
Width - 3 ft 7 in (1.09 m)
Height - 6 ft 5 in (1.96 m)
Turning Radius (outer) - 6 ft 7 in (2.0 m)
KEY FEATURES
Double-H telescopic boom, self-leveling
4WD hydrostatic direct drive
DBS differential lock
Multiconnector hydraulic quick-coupling
11-function multifunction joystick
170+ attachments compatible
ROPS/FOPS certified

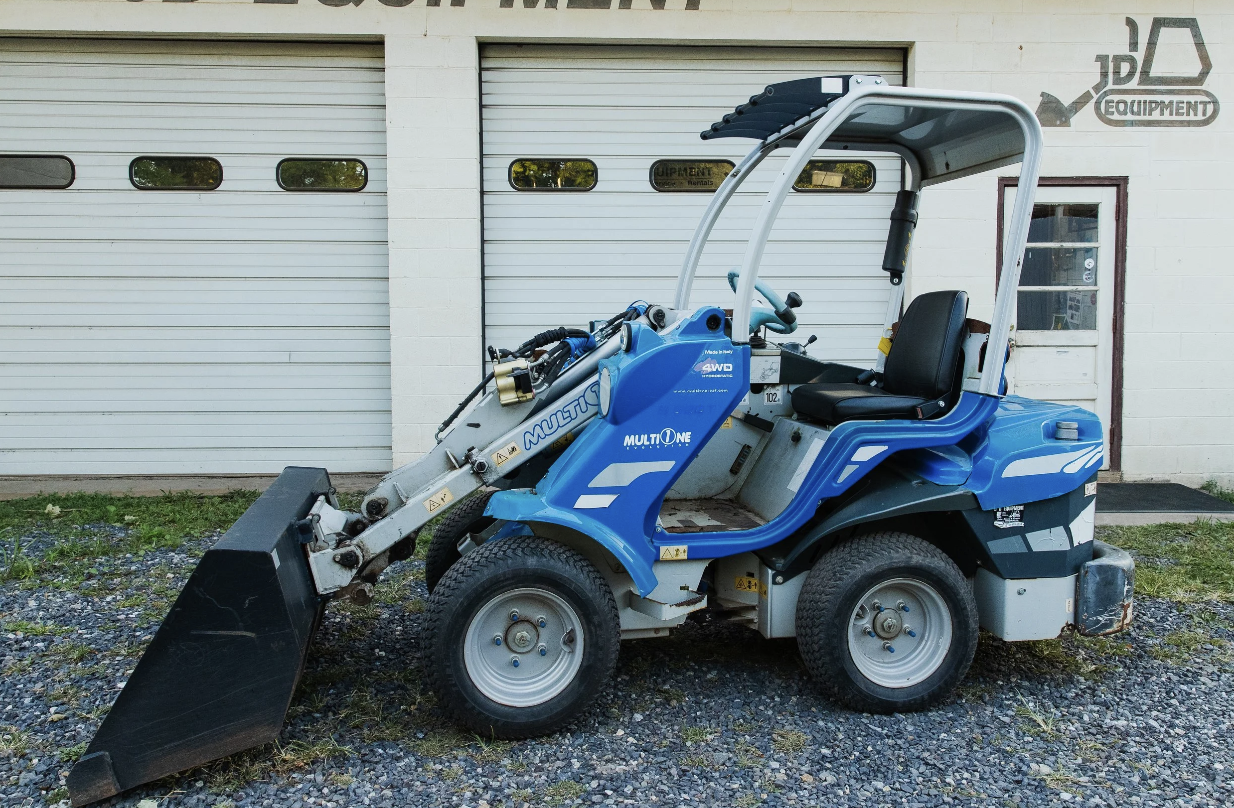

A compact powerhouse built for contractors who need serious lift in tight spaces. The telescopic boom reaches 9 feet while keeping the machine under 4 feet wide — narrow enough to pass through standard doorways and gates. With 4WD, differential lock, and 170+ available attachments, it converts from loader to pallet fork, auger, or material handler in seconds.
