ENGINE
Engine - Kubota D1703-M-Di, 3-cyl diesel
Power - 25 HP (18.5 kW)
Transmission - Hydrostatic 4WD + HTF + SPT
Max Speed - 12.4 mph (20 km/h)
PERFORMANCE
Max Lift Capacity - 3,527 lbs (1,600 kg)
Tipping Load (forks, straight) - 2,932 lbs (1,330 kg)
Max Bucket Pivot Height - 12 ft 2.5 in
Max Loading Ht (forks) - 11 ft 5 in
Max Dump Height - 9 ft 10 in
Telescopic Reach - 5 ft (1.52 m)
Hydraulic Output - 10 GPM @ 2,900 psi
DIMENSIONS & WEIGHT
Operating Weight - 6,206 lbs (2,815 kg)
Width - 55.5–62.6 in (tire-dependent)
Height - 6 ft 6 in (1.95 m)
Turning Radius (inner/outer) - 4'3" / 9'0"
Tires - 31×15.5-15 AS
KEY FEATURES
Telescopic boom — 5 ft forward reach
HTF: auto-regulates traction, no downshifting
SPT Cruise Control: constant speed hands-free
Hydraulic pendulum articulated steering
Z-bar parallel lift boom
LED working headlights
ROPS open canopy (enclosed cab optional)
Hydraulic quick-disconnect system

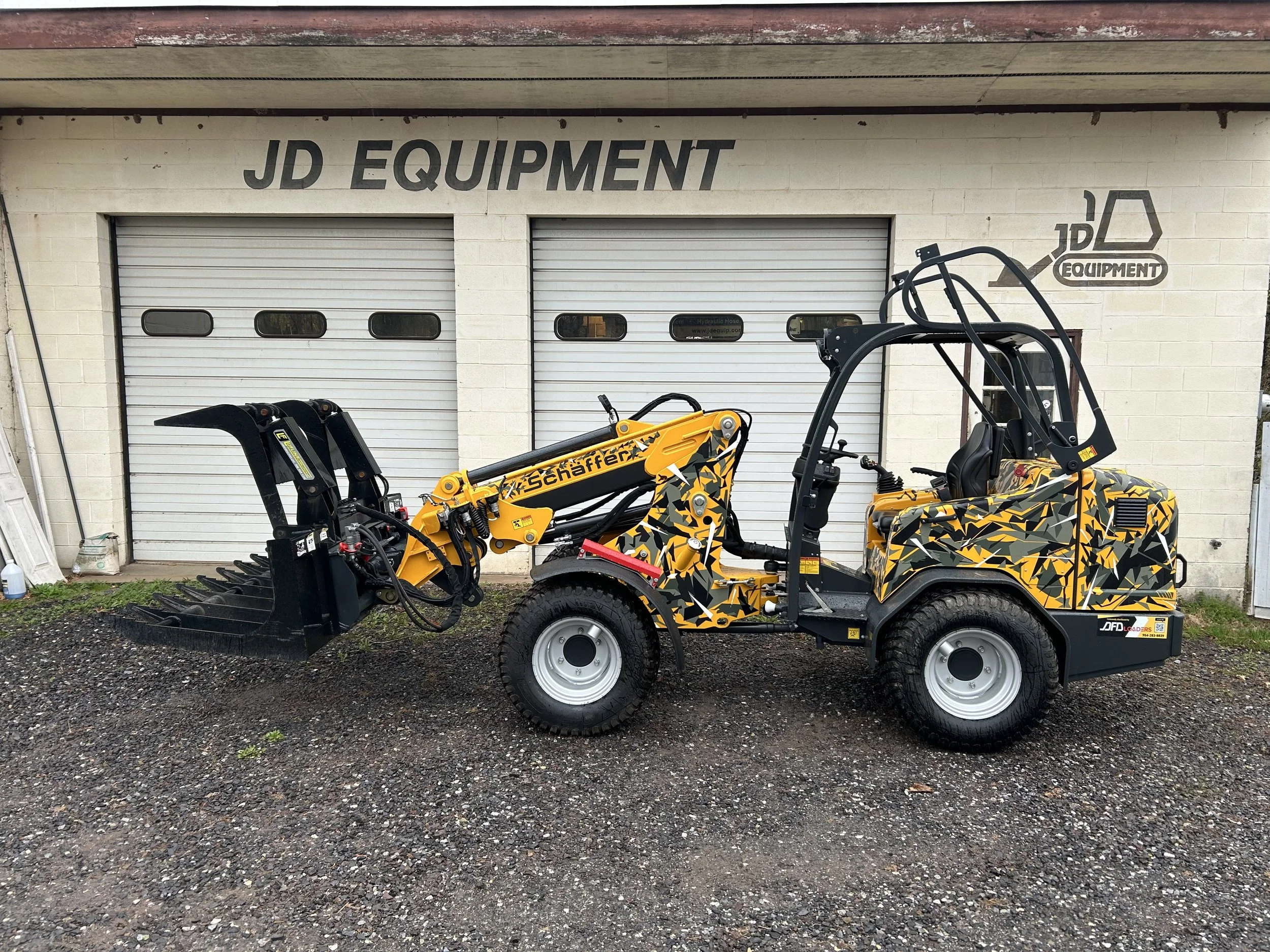

Engineered to fill a specific gap: ultra-compact 25 HP wheel loader with construction-grade lift and real telescopic reach. Delivers a 12-foot pivot height and nearly 3,000 lbs tipping load while staying under 6.5 feet tall — able to work inside most structures. HTF and SPT automate traction and speed management, cutting operator fatigue and fuel consumption. One of the most distinctive and capable machines in the fleet.
